4-20ma gas liquid steam pressure transmitter

4-20ma gas liquid steam pressure transmitter

Pressure types:Gauge pressure,absolute pressure,differential pressure

Measuring range: Gauge: 200Pa-40MPa, Absolute: 2kPa - 10MPa, Differential: 200Pa-10Mpa

Output signal:4-20mA,4~20mA/HART , customer

Reference accuracy:0.075% ,0.05%,

Working temperature:-40-85℃, LCD display unit:-20-70℃

measuring medium:Liquid, gas, or steam level, density and pressure

Media temperature:with silicone oil -40-120℃,

with fluorocarbon oil -10-80℃

Proction class:IP67

OUTPUT SIGNAL:4~20mA two wire,power supply: 10.5-55vdc

4~20mA+HART two wire,power supply: 16.5-55vdc

Diaphragm material:SS316L,Hastelloy C

Stability: ±0.2% URL/5years

Approvals: EX-proof,CE certificate

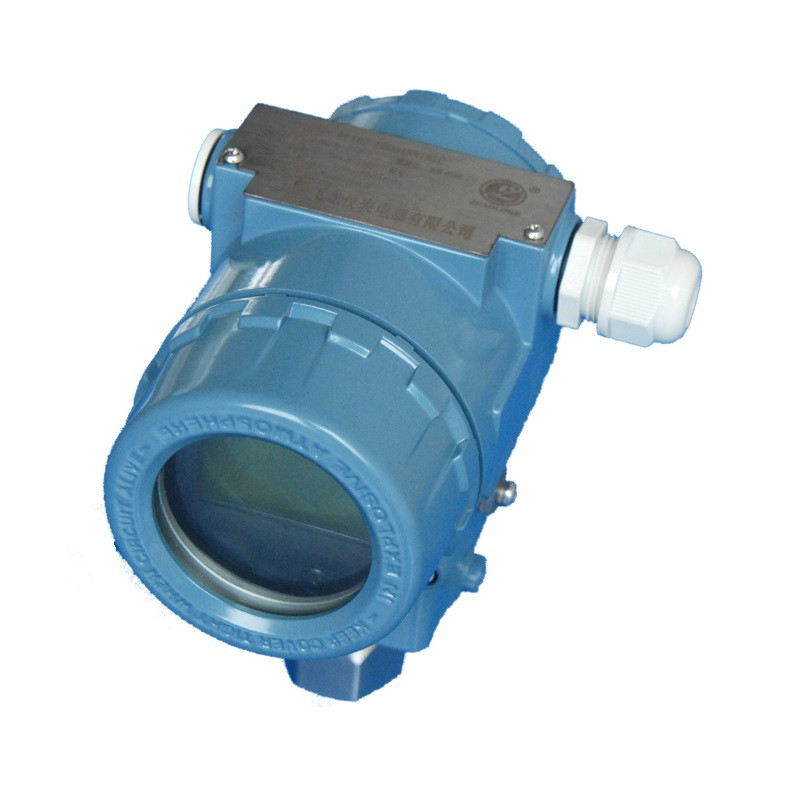

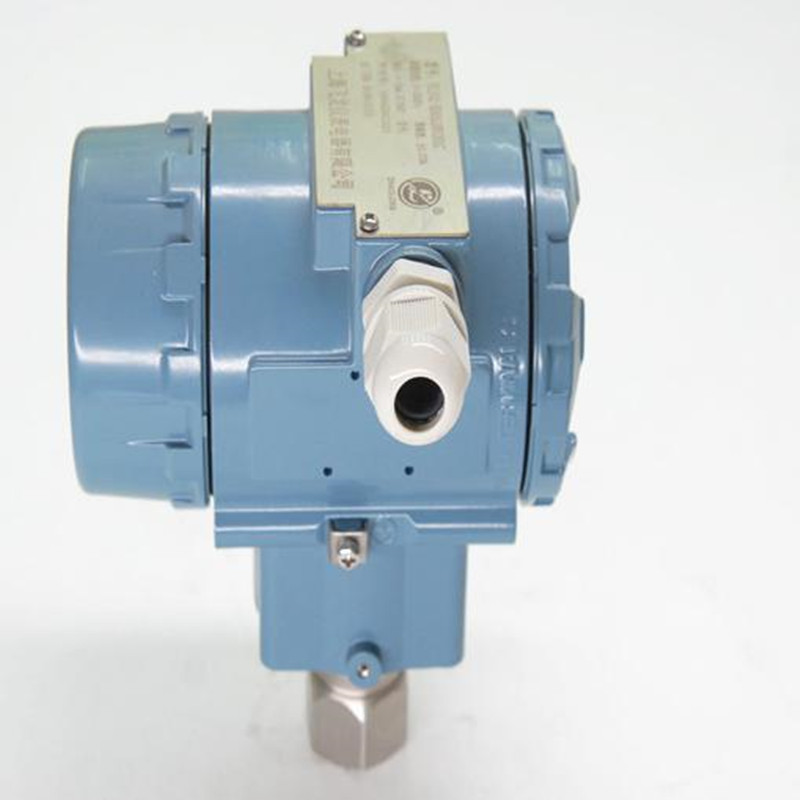

Detailed Images

 4-20ma gas liquid steam pressure transmitter4-20ma gas liquid steam pressure transmitter4-20ma gas liquid steam pressure transmitter4-20ma gas liquid steam pressure transmitter

Packaging & Shipping

4-20ma gas liquid steam pressure transmitter

Certifications

4-20ma gas liquid steam pressure transmitter

Company Information

4-20ma gas liquid steam pressure transmitter

FAQ

1. Payment ways?

T/T, PAYPAL, WESTERN UNION.

2. When will you arrange the production?
In 12 hours since we get your payment.

3. What is your main products?
Thermocouple, PT100 sensor, termperture controller, infared thermometer and so on.

4. Product certifications?
ISO9001, CE, ROHS, FDA, SGS and other certificates.

5. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.

6. What is your warranty ?
For most of our products, the warranty will be 12 months.

7. When will I get a solution for defective products?
Within 48 hours (on working days )

8. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

9. What is your shipping time?
For General Orders, the shipping time will be 5 workdays.
