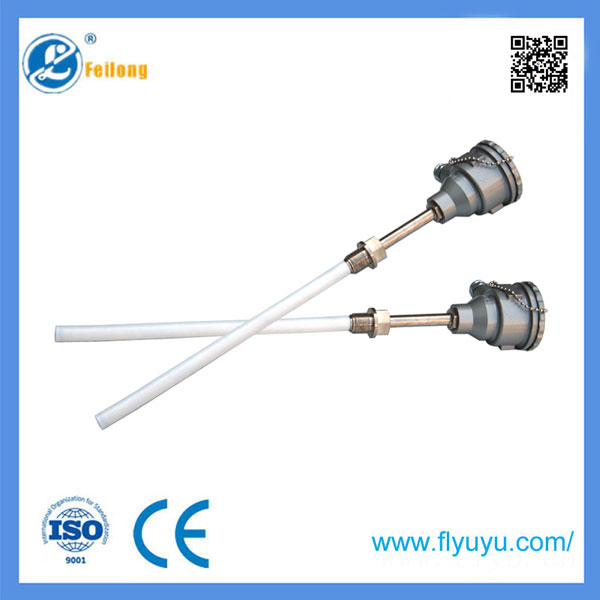

Acid-proof pt100 temperature sensor

  • Item No. WZPF-230
  • Type: PT100 temperature range:0-400C
  • Probe diameter: 16mm probe length:700mm
  • Insert length: 500mm probe material:SS304 with PTFE coat
  • Thread size: M27*2 connection box type:explosion-proof type, T4
  • HS code: 9033000000

● The acid-proof pt100 temperature sensor is widely used for the places which have boiling hydrochloricacid,sulfuric acid, nitric acid and aqua regia.this temperature sensor usually adopt the PTFE tube.
● The PTFE casing tube and bolt(or flange)of are evenly cased on the outer layer of the stainless steel protection tube by using hot sintering technology. PTFE has a series of fine characteristics such as chemical stabillty, wear resistance, corrosion resistance,lubricity, heat durability and cold resistance. PTFE has the minimum coefficient of friction, little water absorption, fine wear resistance and good corrosion proof properties to boiling hydrochloric acid, sulfuric acid, nitric acid and aqua regia.

Acid-proof pt100 temperature sensor
Pt100 temperature sensor
Temperature sensor

Acid-proof pt100 temperature sensor
1.Min MOQ,only one is ok
2.more 15 years factory
3.OEM/ODM accept,CE passed design and fast delivery
